Find high quality jar semi- automatic blow moulding machine with competitive price here. Please rest assured to buy jar semi- automatic blow moulding machine with Taizhou ECO Machinery Co.,Ltd.

Product Description:

Wide-mouth Jar mannual blowing machine factory

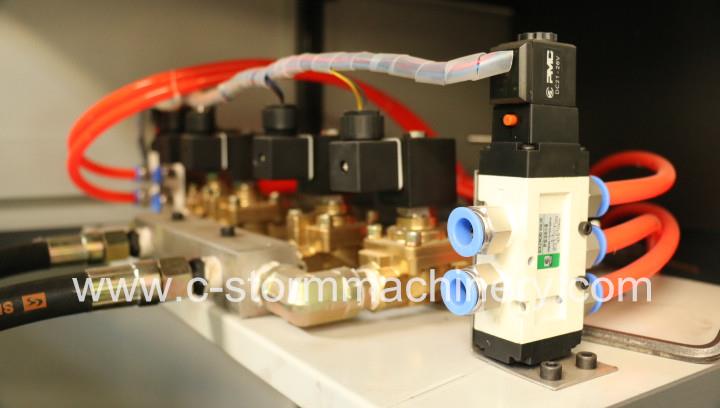

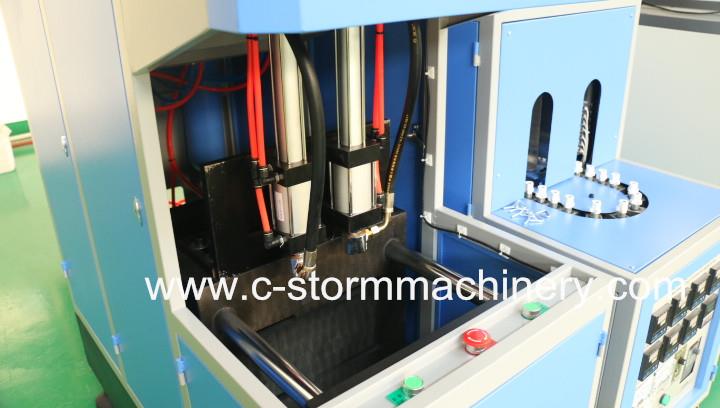

Manual Machine Pictures:

The machine can blow the wide-mouth jar ,cans, container,with neck diameter from 50mm-140mm, the weight is from 20gram-80gram.

Machine Features:

	1. The overall cast-piece racket can strengthen the solidarity and stability of the machine. Adopting hyperbolic arm ensure the bottle joint nice and slim.
	2. The energy-saving design and small electricity comsumption can make it not easy for damage and bring you better economic benefit.
	3. Touch screen :setting blowing time ,stretch time etc. Here. It's very convenient for you.

Operating system: Germany SIEMENS, Japan DELTA ,MITSUBISHI, China THINGET

Action Valve: Germany BOSCH, Taiwan MINDMAN etc.

Blowing valve: America PARKER,

Cylinder: Germany FESTO, Japan MOHE,China YONGCHENG

Electric System: France SCHNEIDER, China DELIXI,CHNT

Notice: The componet brand can be selected according to your requirement.

Machine Parameters:

Model	6L Semi Automatic Blow Molding Machine Technical Parameter
Output	Based on bottle shape	700 BPH (2 cavity), 400BPH(1 cavity)
Product Specifications	Max.container diameter	140mm
	Max.container height	260mm
Machine Power	Power Voltage	380v 3Phase /220v 3Phase 50/60HZ
	Installed power/used power	16kw/7kw
Air Source	blowing pressure	24-26 Bar
	High pressure consuming	0.5 m3/min
	Working pressure	7-8 Bar
	Low pressure consuming	0.6 m3/min
Blowing machine size	Length*width*height/weight	1700*600*1700mm/650kg
Heater size	Length*width*height/weight	2000*650*1450mm/350kg

Why choose us?

1. More than 10 years experience in manufacturing plastic machines.

2. Customized solution and perfect service

3. 24 hours online feedback services

4. Brand-name parts of the machine are optional by yourself.

5. Engineers available to install and test machine oversaeas.

6. The machine can work more than 10 years without damage by human.
