Find high quality pp plastic true union electric ball valve with competitive price here. Please rest assured to buy pp plastic true union electric ball valve with POV Valves (Shanghai) Co.,Ltd

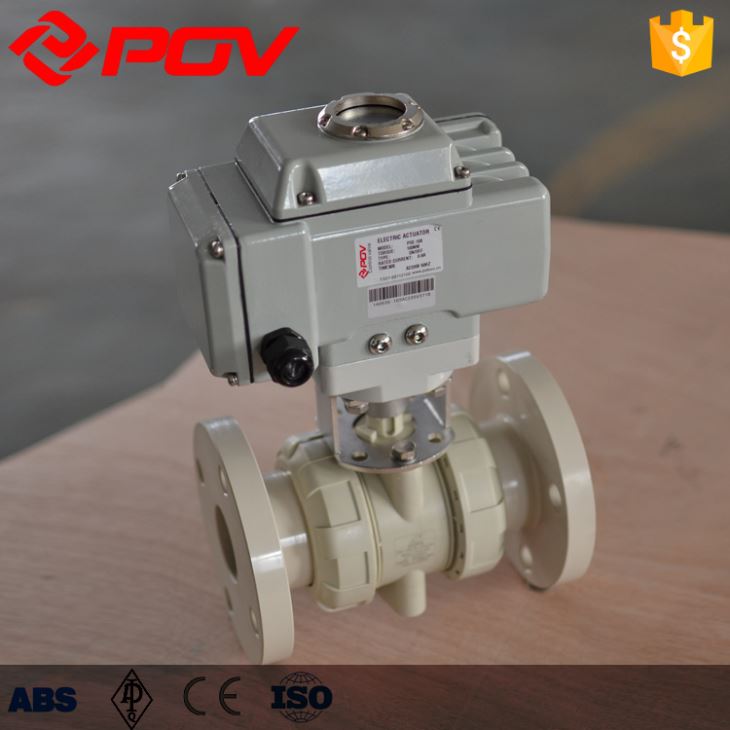

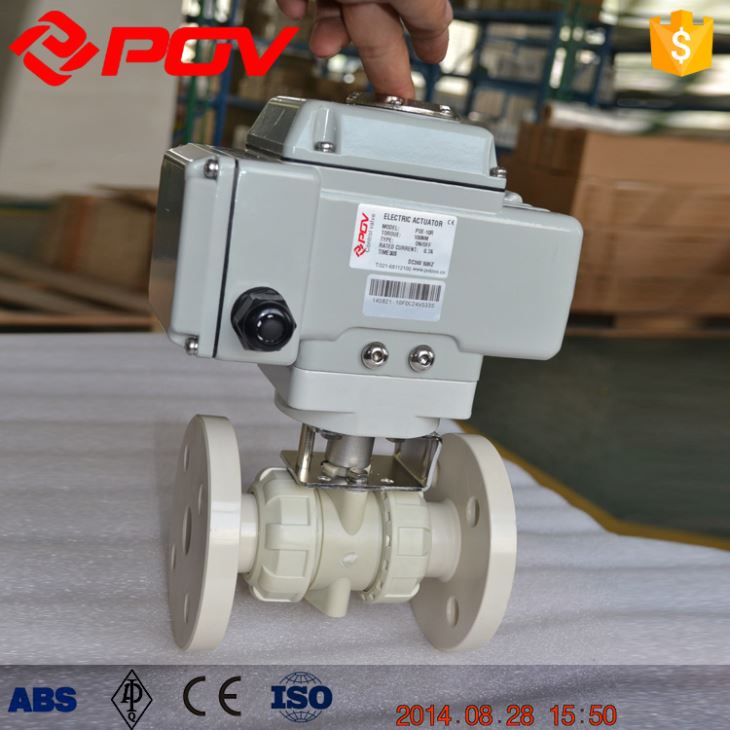

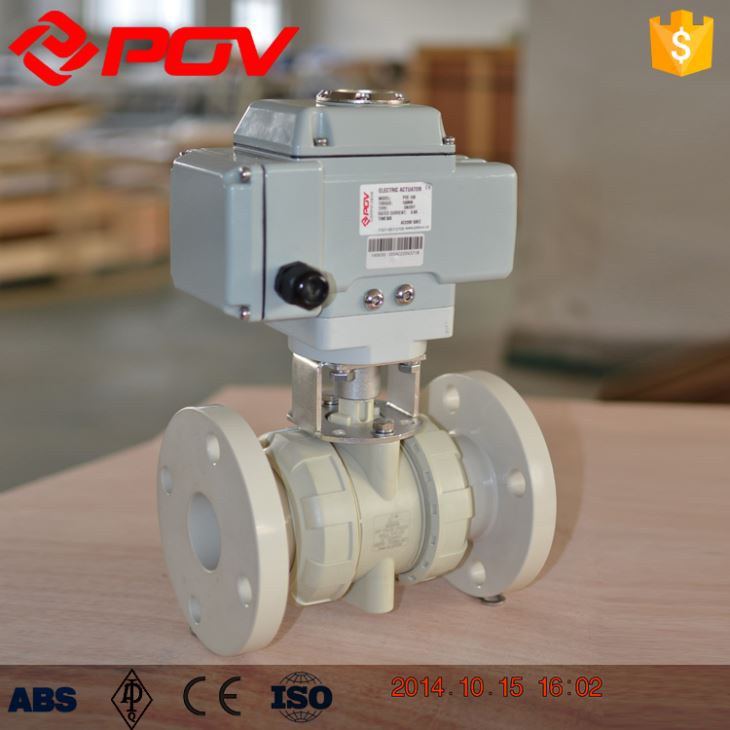

pp plastic true union electric ball valve

Design Features
Size:1/2” ~ 4”
Body: PVC,CPVC,PVDF,PP,ABS
Ball: PVC,CPVC,PVDF,PP,ABS
Seats: PTFE
O-ring: EPDM,FPM
End connections: Socket,Threaded,Flanged
Pressure ratings: 150 PSI
Standard: ANSI,JIS,DIN,BS

Electric Actuator
Output Torque 50Nm to 2000 Nm)
Control: ON-OFF type?Regulation type
Control signal: 4-20 mADC?0-5 VDC?0-10 VDC
Power: 12 VDC,24 VAC,24 VDC,220 VAC,120 VAC,380 VAC 50/60 Hz ±10%
Water-proof actuator:IP67
Option specification:
Explosion-proof actuator: Exd II CT5
Water-proof actuator:IP67

1, CE certification of most units
2, Wiring directly to the terminal strip without interference from other components
3, Simple and unique manual override handwheel system
4, Lowest profile and lightest weight actuator on the market
5, Simple finger or screwdriver adjustment of travel limit cams without interference from other components
6, Highly visible valve status display on most units
