Find high quality pp plastic true union pneumatic ball valve with competitive price here. Please rest assured to buy pp plastic true union pneumatic ball valve with POV Valves (Shanghai) Co.,Ltd

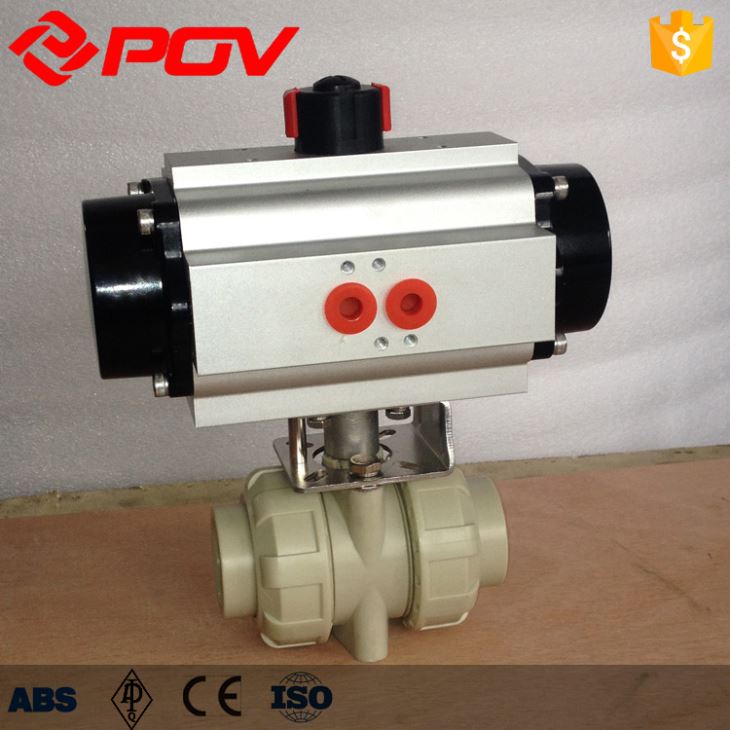

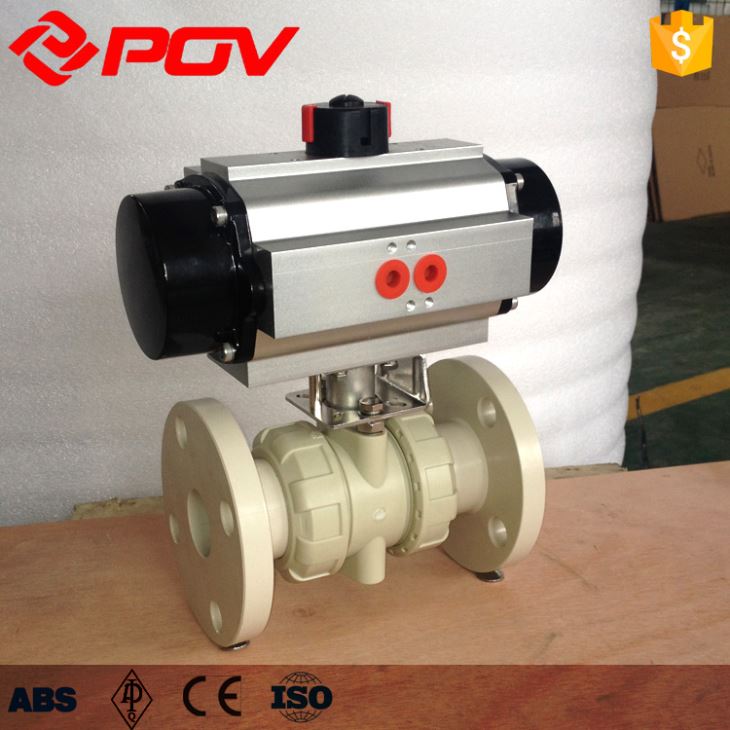

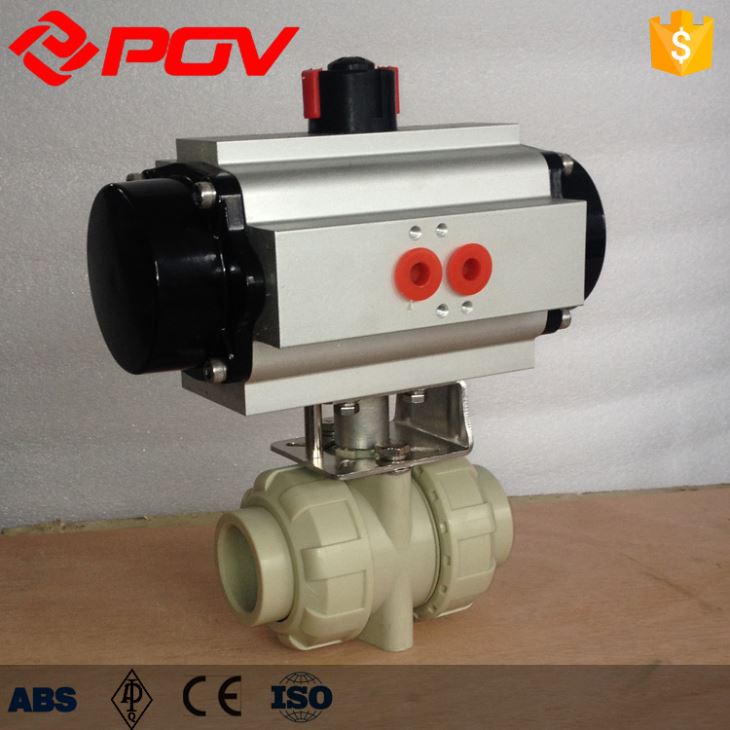

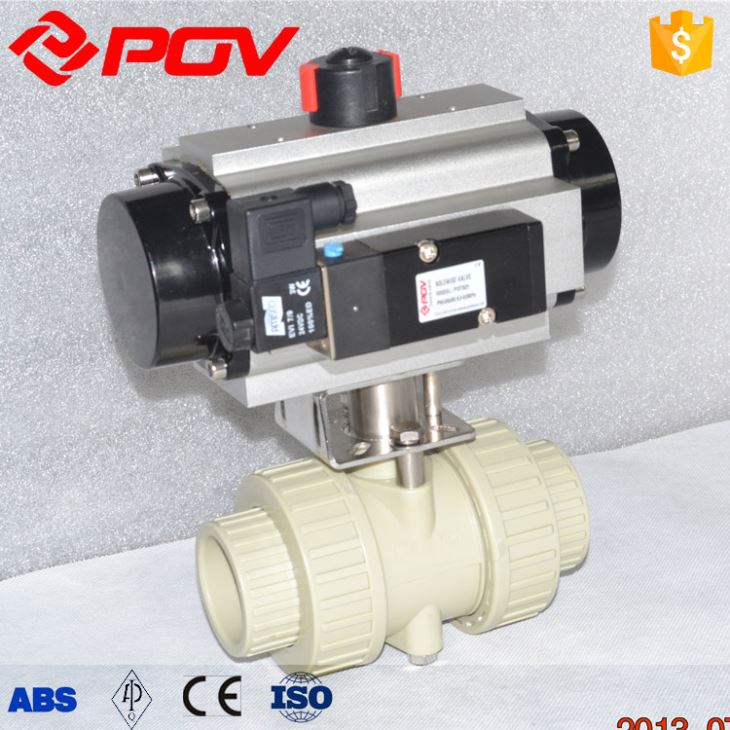

pp plastic true union pneumatic ball valve

Design Features
Size:1/2” ~ 4”
Body: PVC,CPVC,PVDF,PP,ABS
Ball: PVC,CPVC,PVDF,PP,ABS
Seats: PTFE
O-ring: EPDM,FPM
End connections: Socket,Threaded,Flanged
Pressure ratings: 150 PSI
Standard: ANSI,JIS,DIN,BS

Pneumatic Actuator
Output Torque 10Nm to 8000 Nm
Control: Double acting,Single acting normally closed, acting,Single normally open
Pneumatic accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel

All double acting and spring return units are suitable for both on/off and throttling applications. Actuators which can be actuated with other media such as hydraulic oil or water are also available as an option.

1, Two independently adjustable travel stop screws and a cam on the output shaft to permit precise bidirectional adjustment of movement in both the open and closed positions for quarter turn valves (+5° to -5° limit adjustment)
2, Integral porting
3, Standard units have anodized aluminum bodies with polyester coated end caps.
4, Special coatings and materials available for corrosive environments
5, NAMUR accessory compatible
