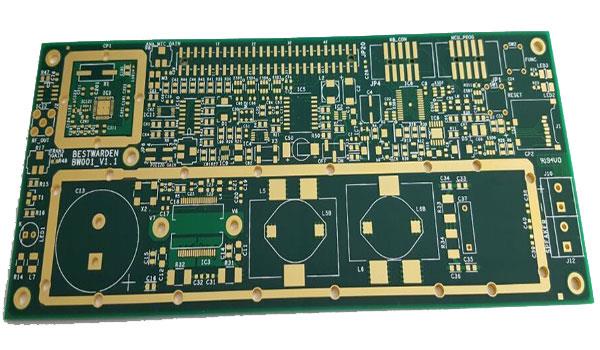

Quick Turn Prototype PCB is one of our competitive items to meet customers’ time to market requirement. We have been manufacturing quick turn Prototype PCBs with affordable prices since 2004. For single-side and double-sided PCBs, depending on your requirement we can offer a fast turnaround time of 24 Hours, and for 4 Layer within 48 Hours, please submit the Gerber data and specification files through email or call us directly for more information on this service. Our standard quick turn lead time for 2 Layer is 5 working days and 4 Layer 6 working days, the prices are much more lower so if you are not so hurry you can choose our standard quick turn services.
General Specification
Layer Count |
1~32 |
Material |
CEM-1, CEM-3, FR-4(Tg130), FR-4(Tg150), FR-4(Tg170), FR-4(Tg180) |
Finished Thickness |
0.1~6.5mm |
Finished Outer Cu Thickness |
HOZ, 1OZ, 2OZ, 3OZ, 4OZ up to 20OZ |
Finished Inner Cu Thickness |
HOZ, 1OZ, 2OZ, 3OZ, 4OZ up to 8OZ |
Surface Finish |
HASL, Lead-free HASL, OSP, Immersion Gold/Tin/Silver, Hard Gold Plating |
Soldermask |
Green, White, Black, Blue, Red, Yellow |
Silkscreen |
White, Black, Yellow |
Panel Size |
Minimum 30x50mm, Maximum 600x1000mm |
Attention: “These are the basic specifications we gonna to need for your Printed Circuit Board fabrication, if you need a quick quote or going to order soon, to save time please kindly provide all the fabrication details to us, of course if there were any other special requirements or details out of this specification, please also comment so we can consider it in our quotation.” --From Union Circuits Engineering dept.
Condition & Terms
MOQ |
1 Piece |
Production Lead Time |
1~15 Working Days Quick turn, 5~20 Working Days mass production |
Min. Drill Hole Size |
0.15mm for mechanical drilling, 0.1mm Laser drilling |
Min. Trace Width/Spacing |
3/3mil |
Data Format |
Gerber RS-274-D/X, .pcb, .pcbdoc, .cam, ODB++, CAD |
E-Test |
100% E-test(cost included in the Unit Price, NO extra charge) |
Certifications |
UL, CUL, ISO9000, ISO14001, TS16949. |
Standard |
IPC-A-600H Class 2(default), Class 3 (base on request) |
Application |
Automotive electronics, computer, communication equipment, instrumentation… |
Packing |
Inner vacuum + foam, Outer carton box |
Shipping |
DHL(default), UPS, TNT, FedEx, EXW, FCA/FOB HongKong, By Sea |
Payment |
T/T, PayPal, Western Union (USD, EUR) |
Quick Turn Prototype PCB L/T(0~3sq.meters) | ||
Layer Count | Quickest Lead time | Standard Lead time |
2 |
24 Hours | 5 Working days |
4 | 48 Hours | 6 Working days |
6 | 72 Hours | 6 Working days |
8 | 96 Hours | 7 Working days |
10 | 120 Hours | 8 Working days |
12 | 120 Hours | 8 Working days |
14 | 192 Hours | 10 Working days |
Above | Base on Gerber |
Small ~ Medium Volume (3~100sq.m) standard lead time 8~15wds, or base on request.
Union Circuits is a Professional Quick turn PCB Manufacturer located in Shenzhen, China, we focus on Quick turn, Prototype, small to medium volume PCB & FPC production on the market for more than 10 years, currently we are serving more than 60 countries customers in different industries with perfect quality and competitive prices, if you are trying to find a reliable offshore PCB supplier or going to switch new suppliers you are worth to try us, welcome customers from all over the world to inquiry and order.
