SJC80 Cubic Screw Jack Details Information:

1. Jack Model: SJC80

2. Lifting Screw Diam.: 50mm

3. Lifting Screw Pitch: 8mm

4. Max load capacity: 50 KN

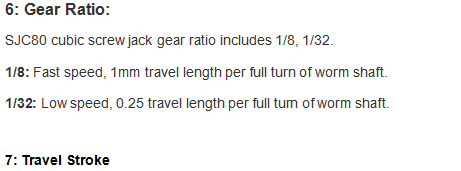

5. Gear Ratio: 1/8, 1/32

6: No standard stroke, all stroke is processed according customers requirements.

7. Top End: top plate, clevis end, threaded end, plain end, forked head, spherical hinge

SJC80 Cubic Screw Jack Specifications:

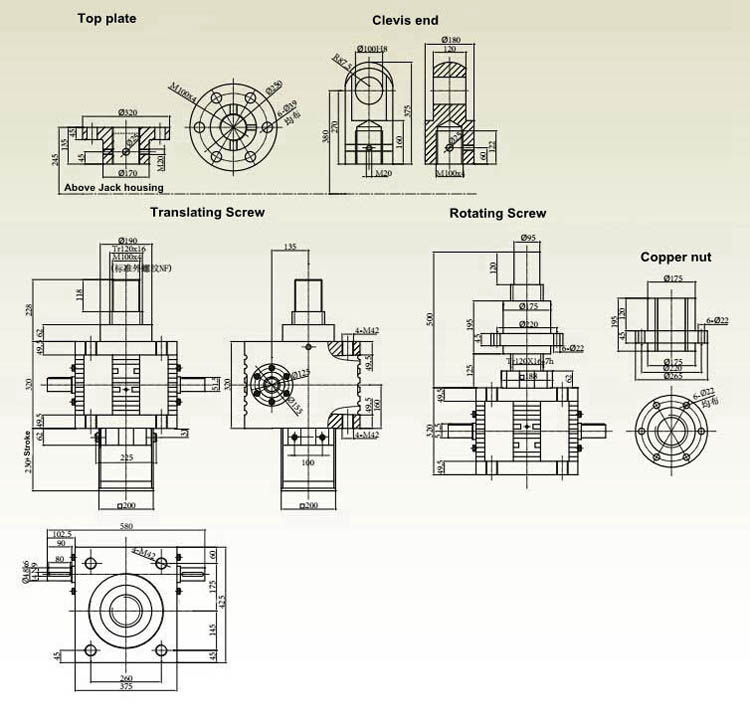

SJC80 Cubic Screw Jack Drawings:

SJC80 Cubic Screw Jack Ordering information



SJC - 80  - US  -  T  -  C -  1/8  - 300   -P
 1     2      3     4     5     6     7      8



1: Jack Brand
SJC: "SIJIE" brand cubic screw jack

2: Load Capacity
80 :  Max. Load capacity is 80KN
Before selecting 80, please check above SJC80 cubic screw jack specifications.

3: Screw Configuration & Mounting Orientation
US: Upright translating screw     UK: Upright keyed screw    UR: Upright rotating screw
IS: Inverted translating screw     IK: Inverted keyed screw    IR: Inverted rotating screw

Note: US,IS(Screw rotation,do axial motion)   UK,IK(Screw anti-rotation,do axial motion)   UR,IR(Screw fixed rotation,traveling nut do axial motion)
