Tension Clamps for ACSR Conductor (Hydraulic) Compression Type)

Min.Order : 1 Pieces Quick Quotation >

Conpany Profile

6 YRS Zhengzhou Cathay Electric Equipment Co.,Ltd

Transaction Level:

info@cathayelectric.com

+8618937651946

Product Details

Find high quality tension clamps for acsr conductor (hydraulic) compression type) with competitive price here. Please rest assured to buy tension clamps for acsr conductor (hydraulic) compression type) with Zhengzhou Cathay Electric Equipment Co.,Ltd

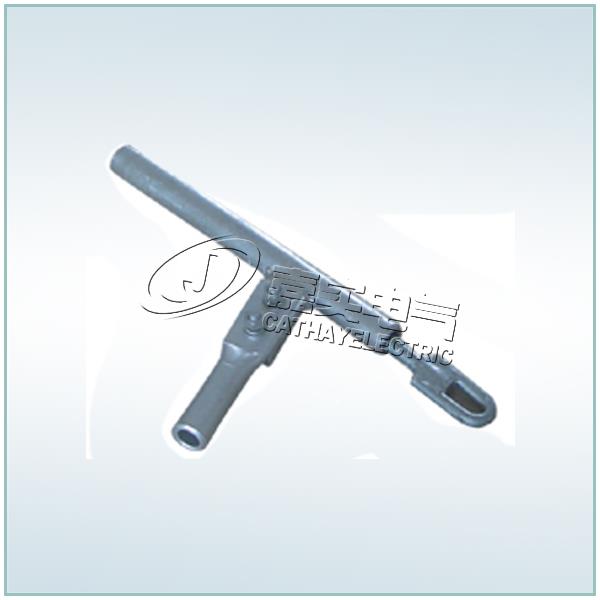

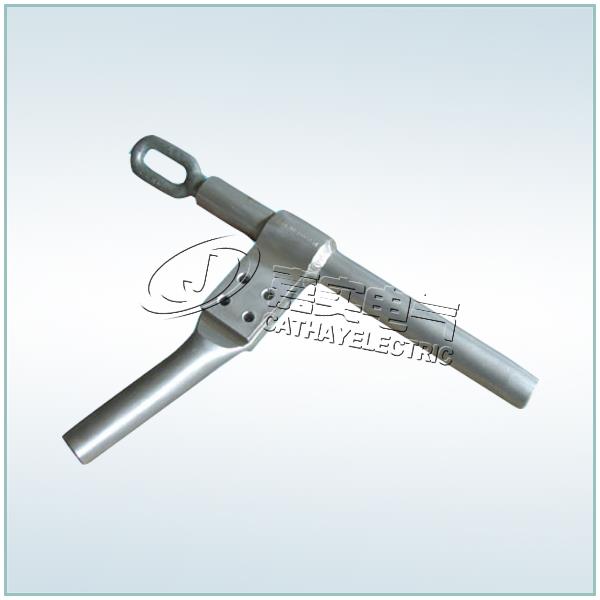

Tension Clamps for ACSR conductor (Hydraulic)
Strain Clamps (Hydraulic Compression Type)



The clamp body and jumper are aluminum, the other parts are hot-dip galvanized.

Catalog No.	Suitable Conductor	(mm) Dimensions						(kN) SlipStength	(kg) Weight
Catalog No.	Suitable Conductor	D	D1	d	L	L1	R	(kN) SlipStength	(kg) Weight
NY-70/40	LGJ-70/40	32	18	16	450	55	11.0	55	2.3
NY-95/55	LGJ-95/55	32	18	18	500	55	10.0	74	2.5
NY-150/20	LGJ-150/20	32	14	16	390	55	8.5	44	2.1
NY-150/25	LGJ-150/25	32	14	16	410	65	8.5	52	2.2
NY-185/25	LGJ-185/25	32	14	16	460	55	9.0	57	2.3
NY-240/30	LGJ-240/30	36	16	18	520	55	11.0	72	2.7
NY-240/40	LGJ-240/40	36	16	18	535	55	11.0	79	2.8
NY-240/55	LGJ-240/55	36	20	18	565	55	11.0	97	2.9
NY-300/15	LGJ-300/15	40	14	165	515	50	11.0	65	3.5
NY-300/20	LGJ-300/20	40	14	18	590	55	12.0	72	3.5
NY-300/25	LGJ-300/25	40	14	18	600	55	12.0	79	3.6
NY-300/40	LGJ-300/40	40	16	18	610	55	12.0	88	3.6
NY-300/50	LGJ-300/50	40	19	20	560	65	12.0	98	3.7
NY-300/70	LGJ-300/70	42	22	20	665	60	12.5	122	3.8
NY-400/20	LGJ-400/20	45	14	18	540	55	11.0	84	3.6
NY-400/25	LGJ-400/25	45	16	18	610	70	13.0	91	3.7
NY-400/35	LGJ-400/35	45	16	20	640	65	13.5	99	4.0
NY-400/50	LGJ-400/50	45	20	20	660	70	14.0	117	4.8
NY-400/65	LGJ-400/65	48	22	22	640	70	13.0	128	5.8
NY-400/95	LGJ-400/95	48	26	22	735	80	15.0	163	6.6
NY-500/35	LGJ-500/35	52	16	20	620	65	14.0	114	5.3
NY-500/45	LGJ-500/45	52	18	20	625	70	14.0	122	5.4
NY-500/65	LGJ-500/65	52	22	20	720	70	15.0	146	6.2
NY-630/45	LGJ-630/45	60	18	22	700	70	16.0	141	7.7
NY-630/55	LGJ-630/55	60	24	22	700	75	17.0	156	7.9
NY-630/80	LGJ-630/80	60	24	24	810	80	15.0	3183	9.2
