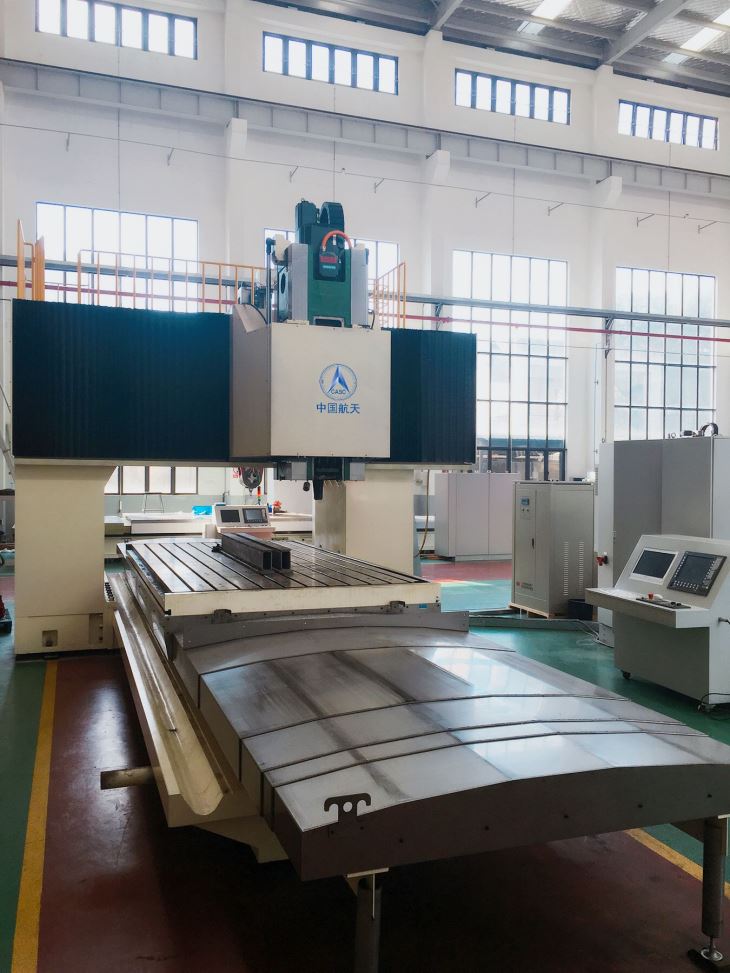

1D Heavy-load Large-thickness Friction stir welding Equipment
The equipment is mainly used in the connection of the railway car body with great thickness. The equipment is with high rigidity, good welding stability, welding thickness can reach 50mm.
Model | HT-JM50×40/1 |
Structure type | Vertical gantry structure |
Max thickness | 50mm |
X(Traverse) | 4000mm |
Y(Cross) | 2000mm |
Z(Plunge) | 500mm |
Machine size(L×W×H) | 11000mm×6500mm×4500mm |
Working table size | 2000mm×4000mm |
X-axis working speed | 3000mm |
Y-axis working speed | 3000mm |
Z-axis working speed | 1000mm |
B-axis | 0-5° |
Control system | Siemens system |
? The spindle adopts square ram structure surrounded in all directions, high hardness flat rail is also used with high rigidity.
? The beam and machine body adopts high strength casting, big diameter screw and multiple roller guide driving to improve the overall stability of welding.
The connection parts (Coupler seat) of the car body in rail transit
